A Typeface for print and screen by Felix Braden and Alex Rütten.
Bubbling, strong, but very accurate. Created with much fine tuning and precision. It has origin broad nib taste and is smooth like butter while reading.
About Tuna
Tuna is simply a contemporary body text font. It is contemporary, meaning the merge of charming broad-nibbed calligraphic
style with optimized legibility on screen – showing that the roots of writing and typesetting are still in charge when reading
“Anna Karenina” on a kindle till 4 o’clock in the morning.
Tuna has a natural fit for cross-media use because the design is based on forms characterized by different conditions of
consistency, stability and good legibility. Well defined shapes and distinctive details only become apparent when used in larger
sizes, making Tuna a true all-rounder.
With more than 700 glyphs in 10 styles created with a maximum of consideration, it has all the qualities of a modern OpenType
font serving the needs of todays communication.
The historical background
A steep pen-angle is a design feature that was much more pronounced with the ancestors of todays serif typefaces. The calligraphic models such as the
“Roman Rustica”, the “Half-Uncial” or the “Carolingian minuscule” have all significantly slanted pen angles – some even steeper than 45°.
With the spread of the printing-press during the following centuries, writing angles became far less slanted, finally ending in an nearly perpendicular
axis during the classicist period in which the similarities of letterforms were emphasized.
This development was seen in a critical light in later years. The objection was that François Ambroise Didot, the famous french printer, had pushed
the art of printing and cutting letters to a destructive ultra-perfection. Studies of that time led to the insight that these developments did not
necessarily contribute to enhancing legibility.
A second source of inspiration was Roger Excoffons extraordinary draft “Antique Olive”. There are many articles about type-design that mention
the horizontal elements of a typeface – for example the serifs – as being an important part of a good text typeface; they enhance the ability
of the reader to track the line of type. Nevertheless, we were impressed by the good legibility of sans serif typefaces that emphasize horizontal
elements (for example “Balance” by Evert Bloemsma, “Signo” by Rui Abreu or “Laika” by Jens Gehlhaar).
In the context of screen-optimizing, the idea of a weight shift in favor of the horizontal is given special relevance – the same line widths in the
vertical and horizontal elements of the font can be mapped perfectly on a rasterized grid.

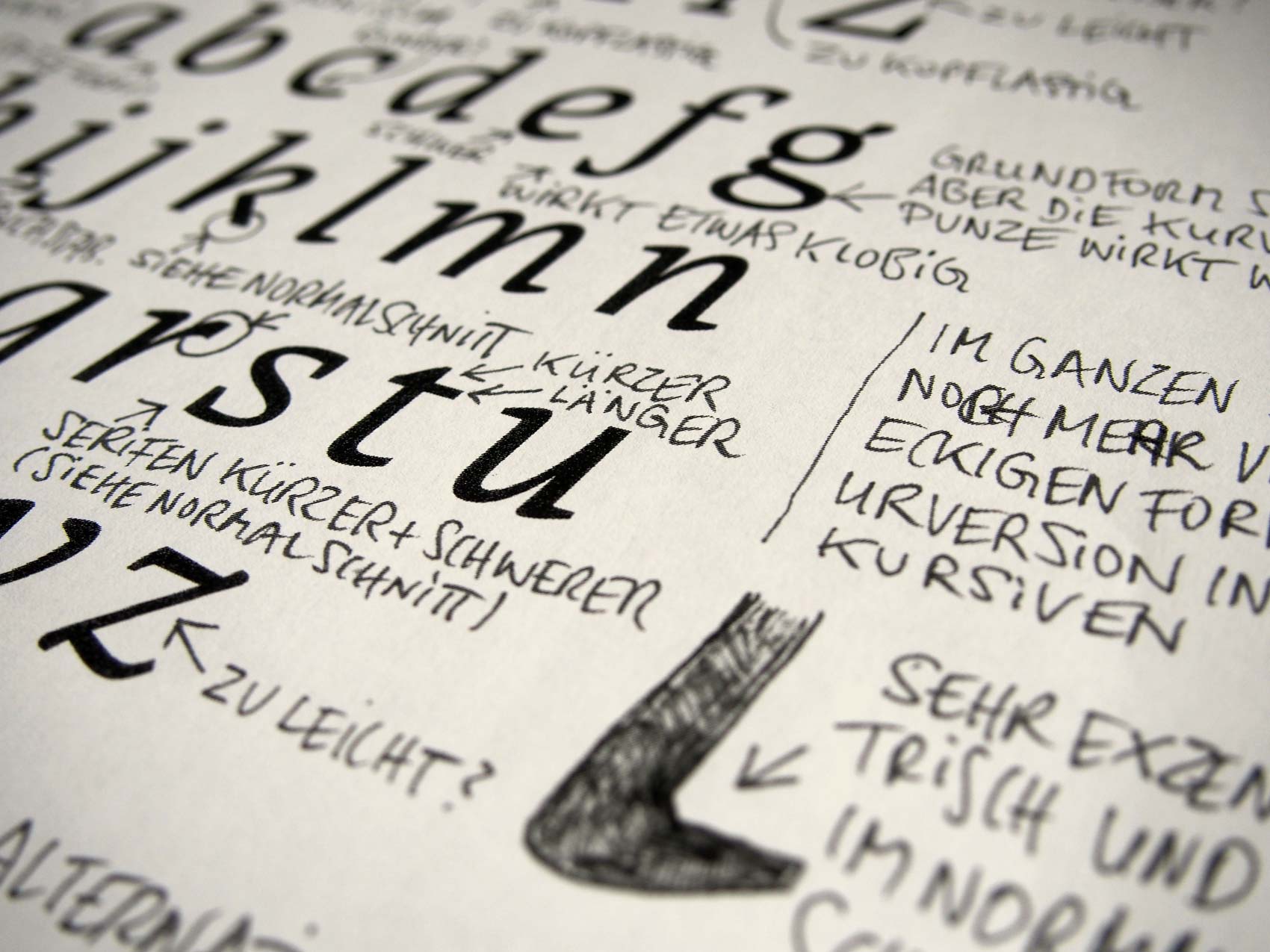

How it works

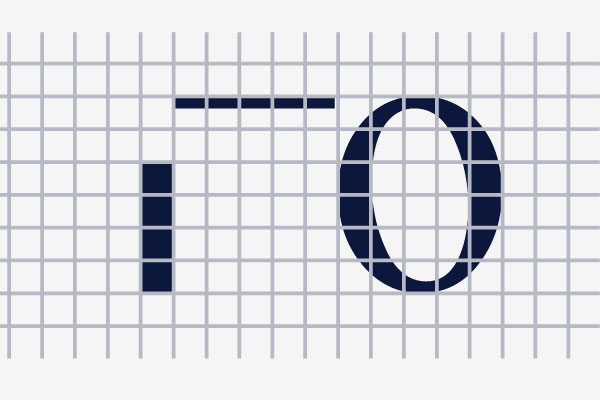

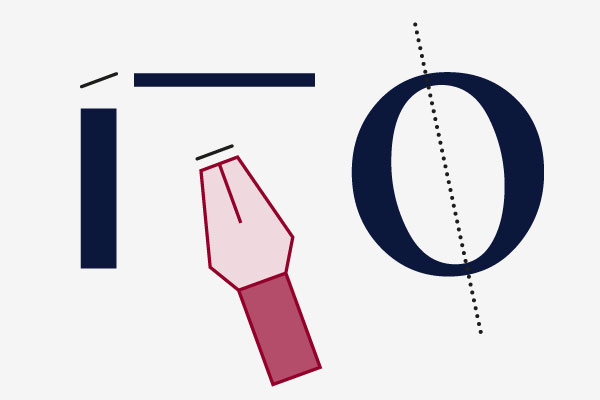

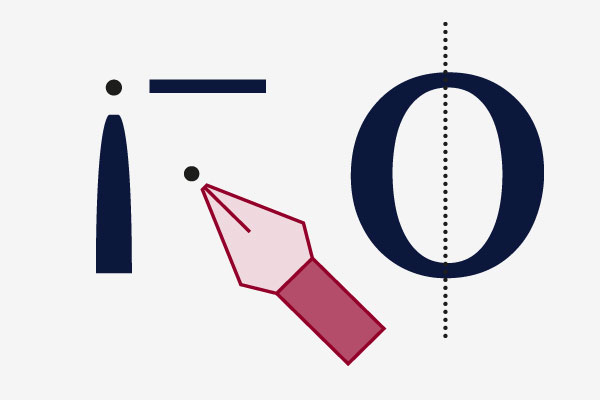

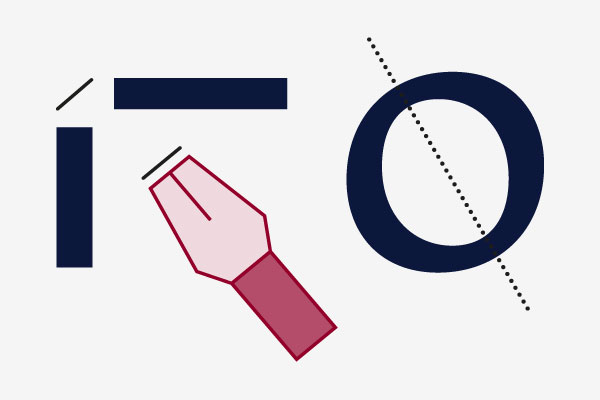

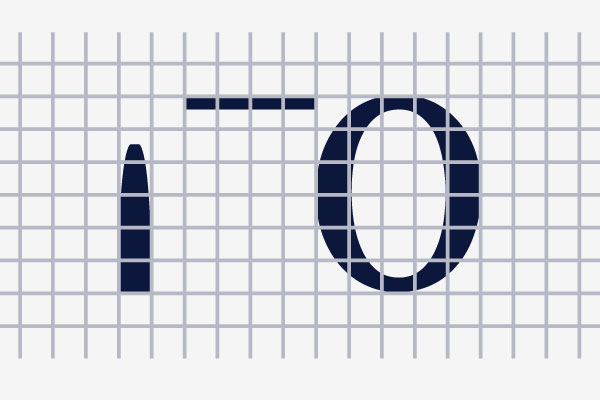

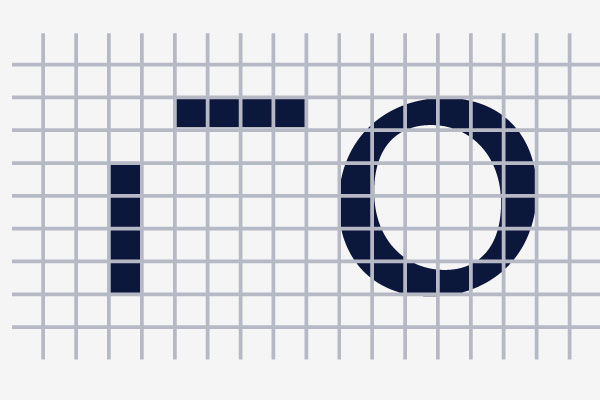

Each writing tool creates characteristic shapes. On a small pixel matrix Tuna’s shapes fit best, because vertical and horizontal strokes are almost equal.
I don’t know where I’m going from here, but I promise it won’t be boring.
a
a
a
a
a
a
Weight Overlay
Type a letter to view the specific character weights
Optimizing for on-screen reading
The reading of longer texts on a screen has become an everyday issue — in the subway you’ll recognize the winner in the
fight digital versus paper. Web Fonts are completely established, more and more content is offered for reading on tablets
or mobile devices. For this reason, demands on typefaces for that field of use have grown steadily. As mentioned above,

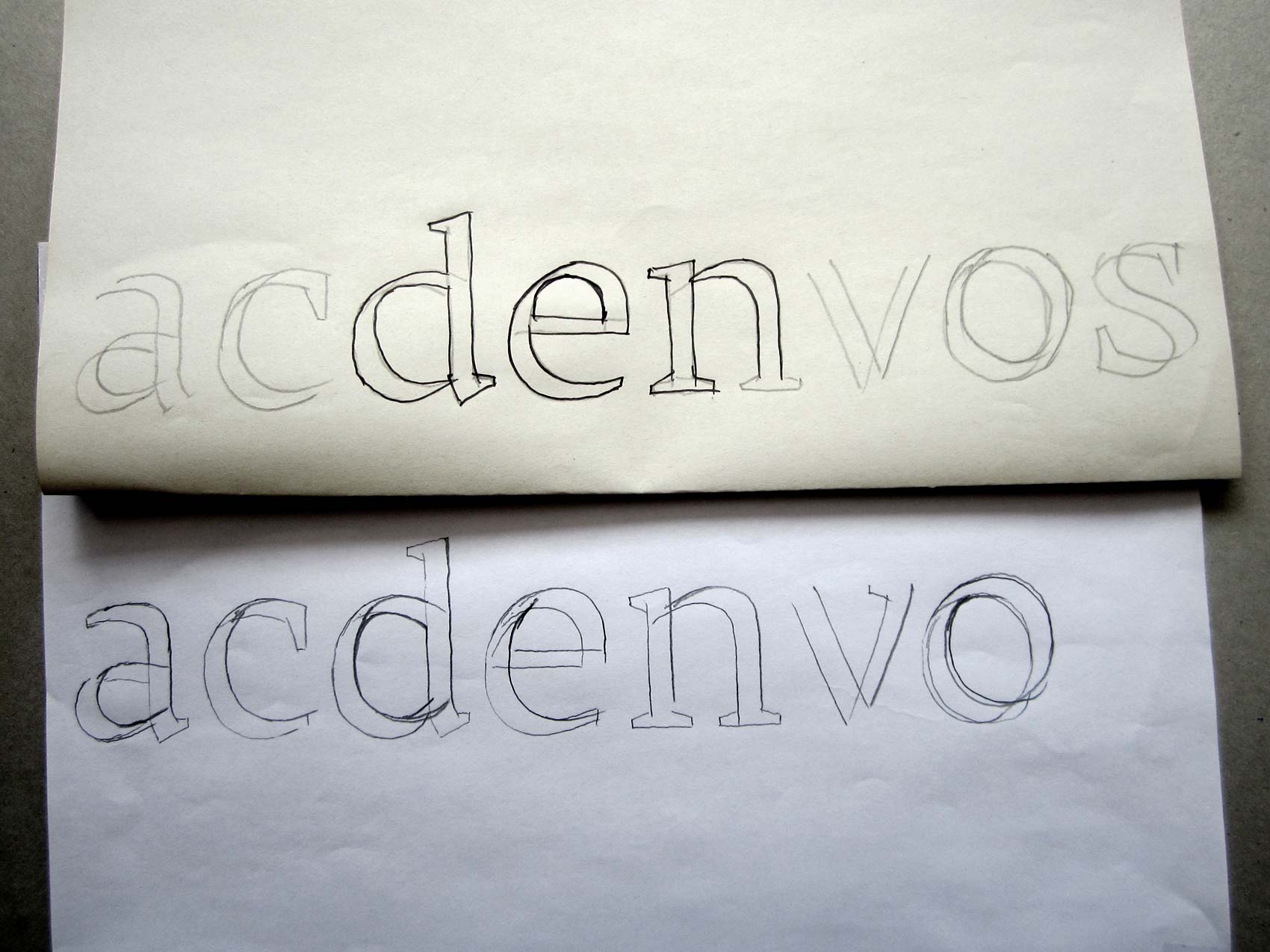

we worked with ancient writing principles during the design process, aiming to fulfill the needs of a contemporary
typeface.
Despite that fact, most typefaces were not especially designed for a digital environment. Often it’s a post-design task
to improve legibility on screen using technical solutions such as hinting. But screen-optimization has to start earlier.

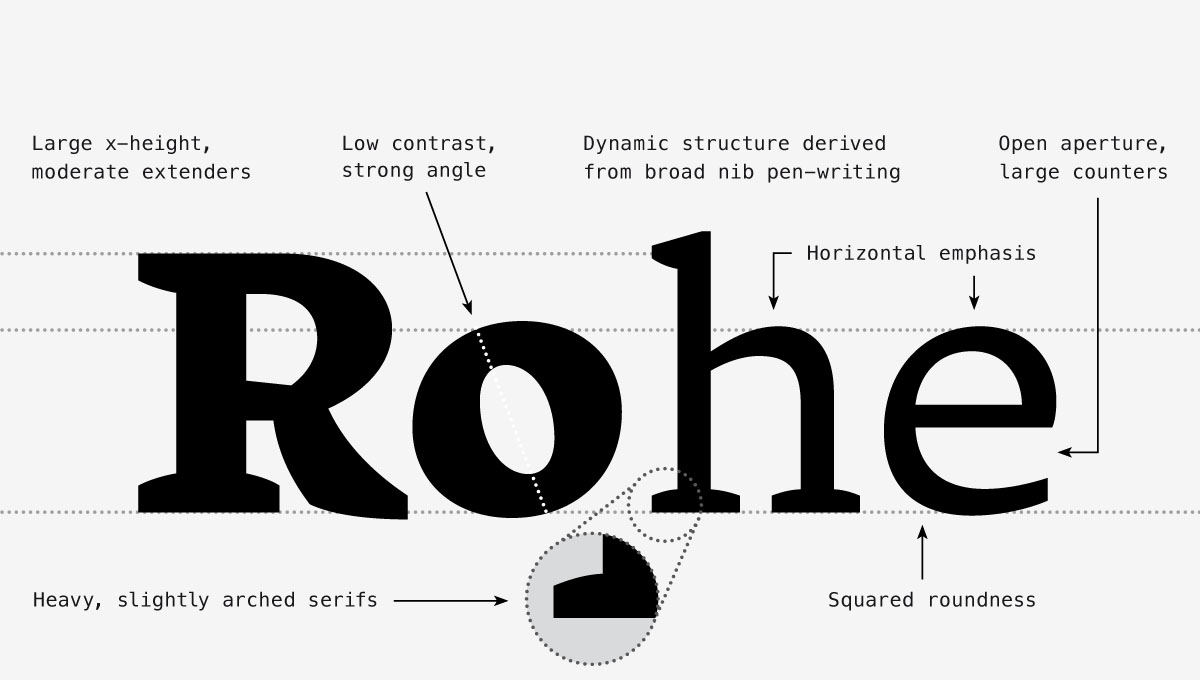

There were a few key-characteristics that we defined as our basic design rules to achieve extraordinary legibility.
Large counters & generous x-height
Large counters and open letter forms with wide apertures increase legibility because they form distinctive shapes und
therefore are important for individualizing the glyphs. Tuna has also a generous x-height in comparison with the typeface’s
ascenders and descenders. The increased x-height allows for adequate whitespace of the counter forms.
Individual letterforms
This works quite simply: If characters are too similar, you will have to re-read a word. If the word-image is not clear
enough, it will simply take more time to read it; especially if it includes difficult candidates like uppercase ‘I’ and
lowercase ‘l’. It was important for the design to keep the variety of glyphs throughout the whole character set.
Squared roundness
The more angular a curve is, the better it will fit into the pixel grid. So circular forms are taken as close to the
edges as possible. Obviously that leads to a bigger counter form inside.
Moderate contrast & strong serifs

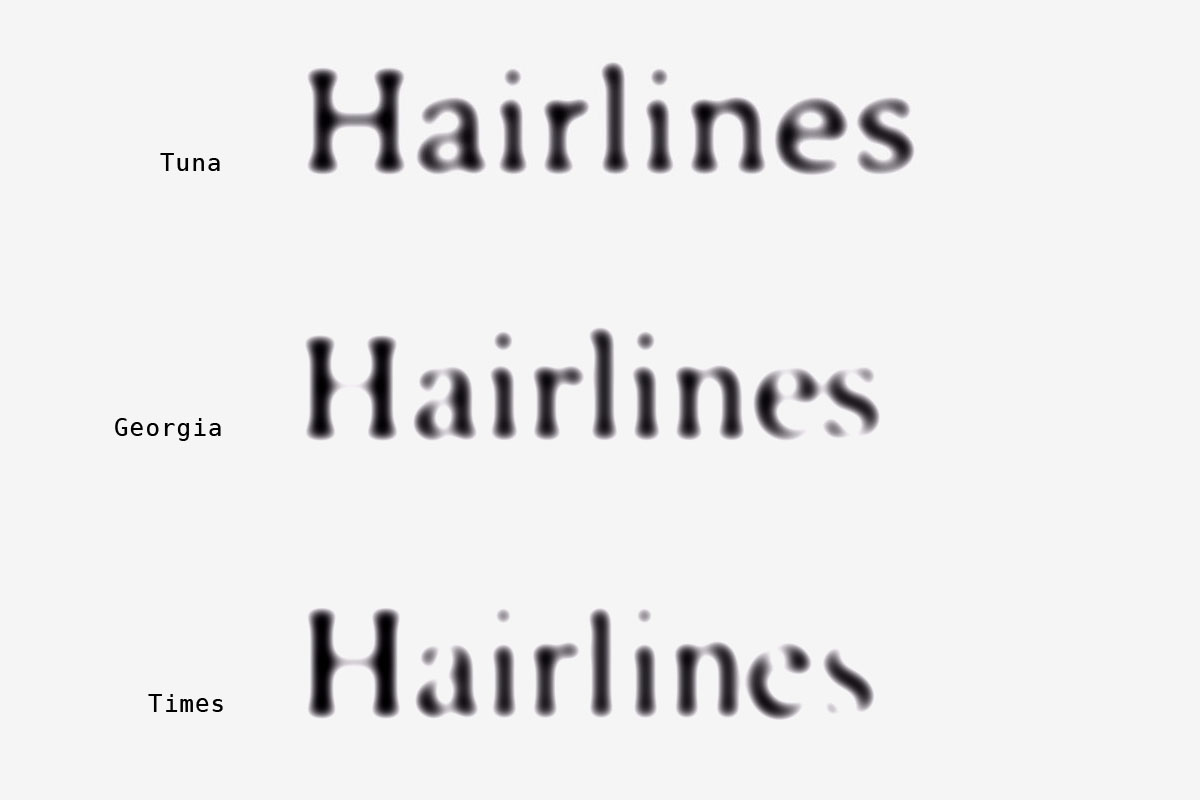

A common problem for display-qualities are thin lines and small punches. Hairlines tend to disappear at smaller sizes
or under bad conditions, for instance in newspaper-print or on illuminated screens. Characters seem to fall apart into segments.
Low stroke contrast will solve that problem. This attribute is mainly associated with sans-serif typefaces, but could be
integrated in a serif design too – even combined with a calligraphic touch.

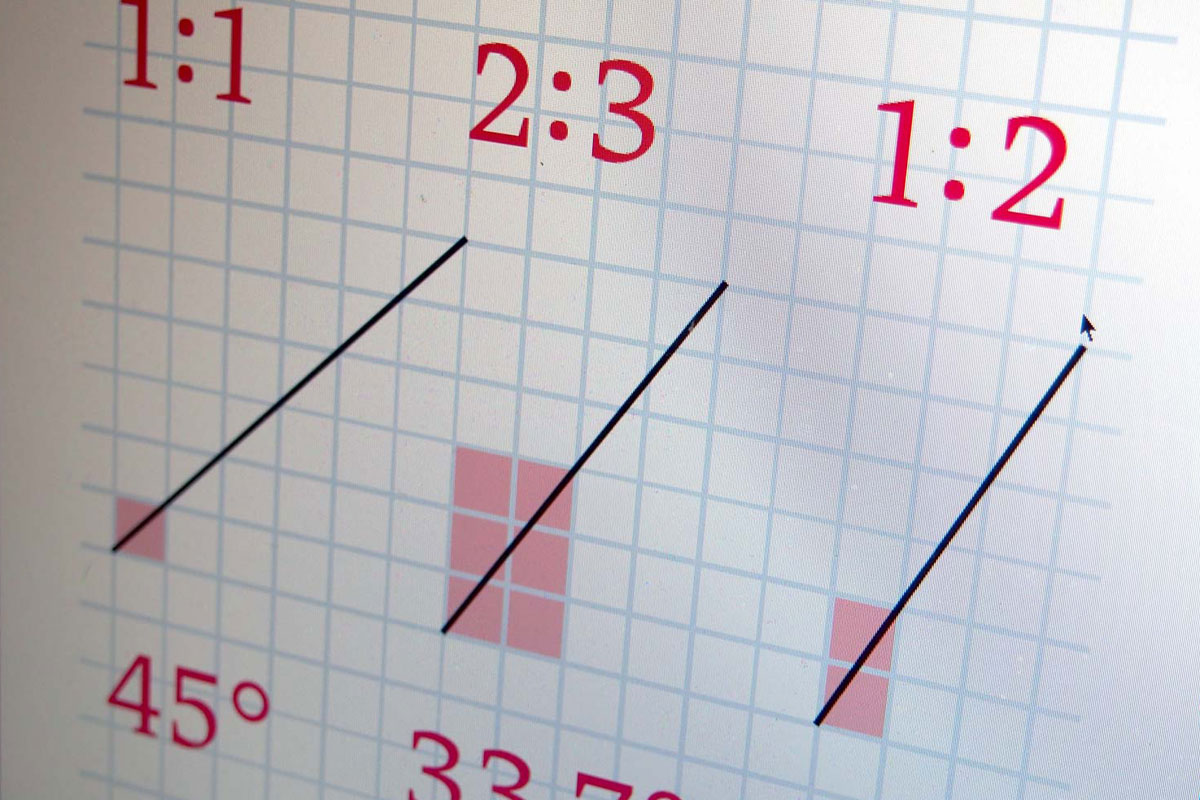

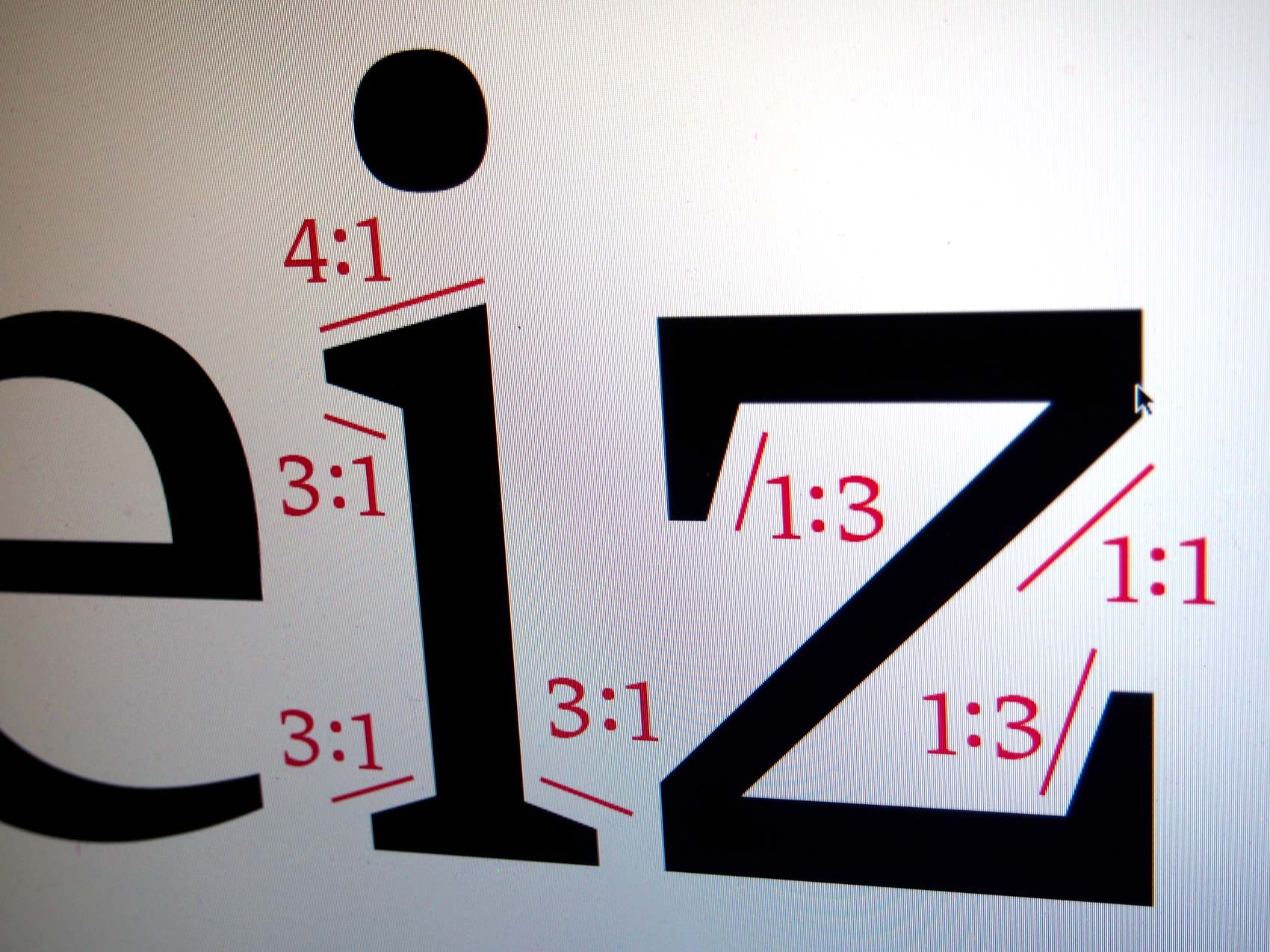

Rational angles
Angles with a ratio of whole numbers have a better reproduction on screen because they relate to the pixel grid. In the
first step we went slightly too far – we were forcing the letter strokes into grid. The letters turned out to be too static and uniform.
So we decided to take a little more of a relaxed stance to the paradigm of rational angles.
Simplicity
Too many details blur the appearance in common reading font sizes; they interfere with the basic letter form, which is important
for identifying the character quickly – simplicity works to benefit the word image.

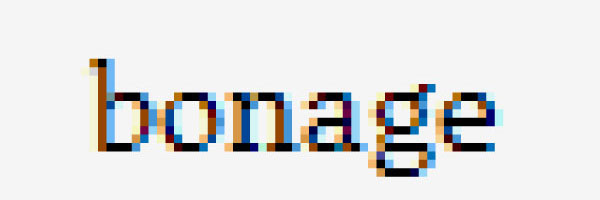

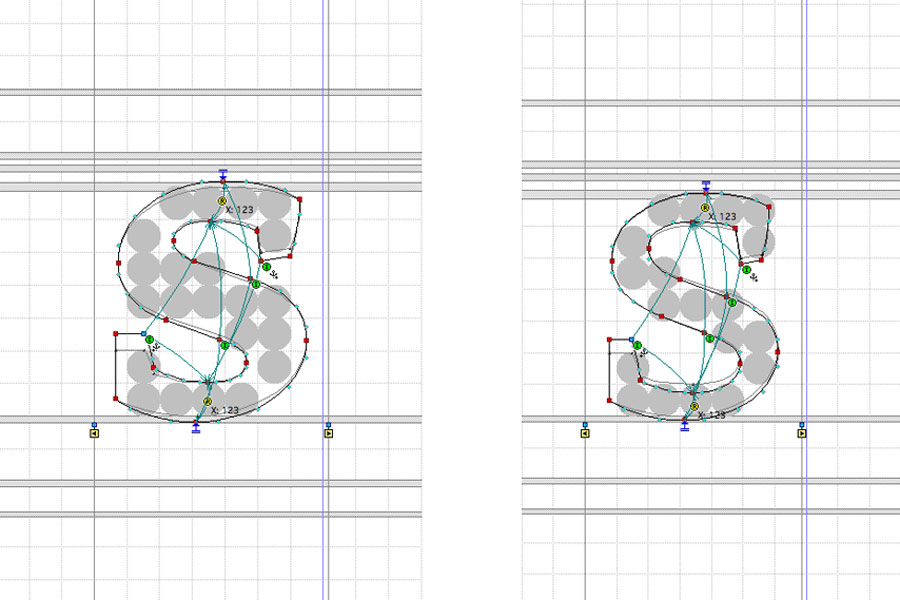

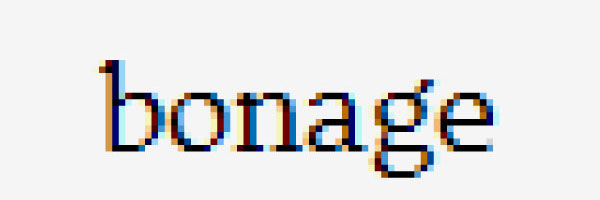

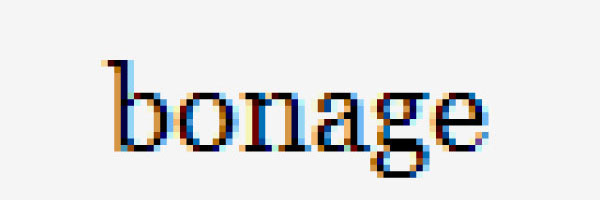

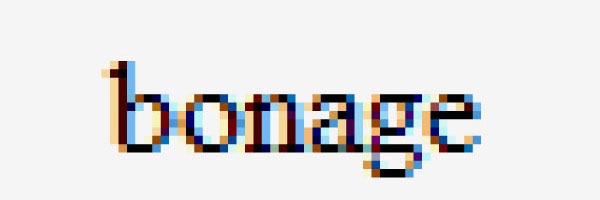

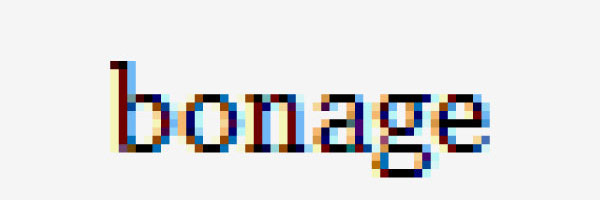

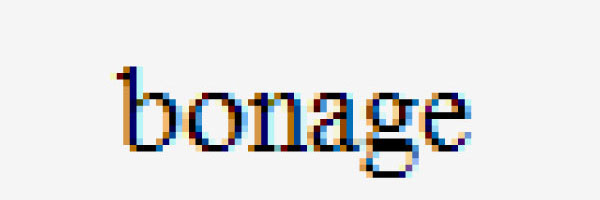

Manual hinting
Tuna has a manually optimized TrueType hinting and was improved especially for the use in font sizes between 9 and 14 points.
On screen, however, the letterforms have to be translated into pixels in a more or less coarse grid. Font hinting is a process
by which letters are adjusted individually in different sizes to line up with a rasterized grid. Improving the quality in low
screen resolutions, hinting is critical for producing clear, legible text. For each letter specific instructions can be stored,
as the character is to be displayed in a specific font size on the pixel grid.
During font hinting, the consistency of letterforms is often sacrificed by changing the outline, aiming for better legibility.
As a result the outlines look quite different in different sizes and may differ from the original letterform.
Tuna takes the opposite approach: The letterforms use various design features – as listed above – to avoid classical
“danger zones”. The rendering of hairlines, for example, needs no corrections if they are already strong enough. Because of that
no changes to letterforms are needed even at small sizes, and the character of the font is retained and stays very much the
same in any environment and size.
Nevertheless, we did not rely on automatically generated hinting. We put the hinting process in the hands of Jan Gerner
(Yanone), who did a good job. Tuna was optimized especially for ClearType and DirectWrite (the glyph rendering API of Microsoft).
Available Weights
The family comes in five weights: Light, regular, medium, bold and black. All weights can be combined with each other,
but during the design process certain weights were adjusted to each other. Tuna-Regular is matched to Tuna-Bold,
Tuna-Light was paired with Tuna-Medium and Tuna-Medium with Tuna-Heavy. So if you for example want to stress one word
in a text set in Tuna-Regular, use Tuna-Bold in combination.
The different weights were interpolated from two poles. The intermediate steps were calculated based on Luc(as) de
Groot's theory. According to this formula (B=√(A÷C)), which generates a exponential increase, the weights
can be clearly distinguished optically from each other.
Despite the logic of that theory, the purely mathematical calculation led to too little differentiation within the
light weights and extreme results in the stronger weights. Therefore Tuna follows an adjusted and slightly flattened
interpolation curve.
tunatunaLight
tunatunaNormal
tunatunaMedium
tunatunaBold
tunatunaHeavy
Maguro
Rückenflosse
Der servierfertige pikante Genuss
Overfishing
Longlined bigeye
Großaugen
In Aufguss und eigenem Saft
Explotación
solid pack in soybean oil
Character-set
Besides that fact that Tuna offers Small Caps, various styles of numerals and mathematical signs as well
as common currency symbols, it has a wide range of language support. To meet the needs of global communication,
Tuna supports all western-, eastern- and central-european languages.
The OpenType format allows you to include different character variants within a single font file,
so that there is no need to have separate fonts for Tabular Figures, Old Style Figures, Small Caps
and so on. The desired format can be activated within the layout application (such as Adobe InDesign
or Illustrator etc).
OpenType features can also be used in website layouts. You can easily style your text with OpenType
features using various CSS expressions – but make sure that your browser supports the features you’re
using.
flfi
flfi
Standard Ligatures (LIGA)
Standard ligatures are designed to improve the kerning and legibility of certain letter pairs. For example,
when this feature is activated, typing ‘f’ and ‘i’ will automatically produce the ‘fi’ ligature. Using ligatures
does not affect the spelling and hyphenation of your text in any way.
Small
small
Small Caps (SMCP & C2SC)
The Small Caps feature allows you to replace lower case letters with small caps. There are two methods: The
first one (SMCP) replaces only the lowercase letters. The second method (C2SC) replaces the capital letters too
and it also replaces glyphs like the questionmark, at-sign, slashes etc. – if the corresponding glyphs are available.
£0123456789
£0123456789
£0123456789
£0123456789
Tabular figures (TNUM)
Tabular figures (TF) are for use in tables where numerals need to be aligned vertically. Tabular figures
are available as a OpenType feature and have a fixed width in all weights. In Tuna fonts also old-style
tabular figures are included.
1983£396
1983£396
Old-style Figures (ONUM)
The proportional old-style figures feature changes standard figures to old-style figures which
work well in running text, as they have the same proportions as lower case letters with their
ascenders and descenders. There are also matching currency symbols for these numbers.
Note5
Note5
Superscript (SUPS)
Replaces all styles of figures (old-style, tabular, lining) and letters with their superior alternates,
which can be used for footnotes, formulas, etc. Superior characters are adapted in stroke weight and
are also spaced more generously.
C2H6O
C2H6O
Subscript (SUBS)
Similar to the superscript numbers it replaces all styles of figures with their subscript alternates.
Mainly the subscript feature is used to set formulas.
13/4cups7/8inch
13/4cups7/8inch
Arbitrary Fractions (FRAC)
Besides the included standard fractions, other arbitrary fractions could be easily done by using
the fraction feature, which converts numerals in combination with a slash into fractions oriented to
the capital height.
